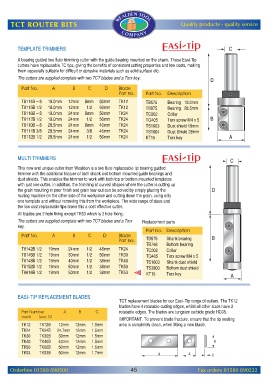

TEMPLATE TRIMMERS

A bearing guided two flute trimming cutter with the guide bearing mounted on the shank. These Easi-Tip
cutters have replaceable TC tips, giving the benefits of consistent cutting properties and low costs, making
them especially suitable for difficult or abrasive materials such as solid surface etc.
The cutters are supplied complete with two TCT blades and a Torx key.

Part No. A B C D Blade
Part no. Part No. Description

T8114B – 8 19.0mm 12mm 8mm 50mm TK12 TB575 Bearing 19.0mm
T8115B 1/2 19.0mm 12mm 1/2 50mm TK12 TB975 Bearing 28.5mm
T8116B – 8 19.0mm 24mm 8mm 50mm TK24 TC002 Collar
T8117B 1/2 19.0mm 24mm 1/2 50mm TK24 TQ405 Torx screw M4 x 5
T8110B – 8 28.5mm 24mm 8mm 40mm TK24 TS1603 Dust shield 19mm
T8111B 3/8 28.5mm 24mm 3/8 45mm TK24 TS1604 Dust Shield 28mm
T8112B 1/2 28.5mm 24mm 1/2 50mm TK24 KT15 Torx key

MULTI TRIMMERS

This new and unique cutter from Wealden is a two flute replaceable tip bearing guided
trimmer with the additional feature of both shank and bottom mounted guide bearings and
dust shields. This enables the trimmer to work with both top or bottom mounted templates
with just one cutter. In addition, the trimming of curved shapes where the cutter is cutting up
the grain resulting in poor finish and grain tear-out can be solved by simply placing the
routing machine on the other side of the workpiece and cutting down the grain, using only
one template and without removing this from the workpiece. The wide range of sizes and
the low cost replaceable tips make this a cost effective cutter.
All blades are 2 hole fixing except TK53 which is 3 hole fixing.
The cutters are supplied complete with two TCT blades and a Torx Replacement parts
key.
Part No. Description
Part No. A B C D Blade
Part no. TB575 Shank bearing
TB748 Bottom bearing
T8142B 1/2 19mm 24mm 1/2 48mm TK24 TC002 Collar
T8145B 1/2 19mm 30mm 1/2 50mm TK30 TQ405 Torx screw M4 x 5
T8148B 1/2 19mm 40mm 1/2 38mm TK40 TS1603 Shank dust shield
T8152B 1/2 19mm 50mm 1/2 38mm TK50 TS3900 Bottom dust shield
T8616B 1/2 19mm 50mm 1/2 38mm TK53 KT15 Torx key

EASI–TIP REPLACEMENT BLADES
TCT replacement blades for our Easi–Tip range of cutters. The TK12
blades have 4 rotatable cutting edges, whilst all other sizes have 2
Part Number A B C rotatable edges. The blades are tungsten carbide grade HC05.
each box 10
IMPORTANT: To prevent blade fracture, ensure that the tip seating
TK12 TK12B 12mm 12mm 1.5mm area is completely clean, when fitting a new blade.
TK24 TK24B 24.7mm 12mm 1.5mm
TK30 TK30B 30mm 12mm 1.5mm
TK40 TK40B 40mm 12mm 1.5mm
TK50 TK50B 50mm 12mm 1.5mm
TK53 TK53B 50mm 12mm 1.7mm
