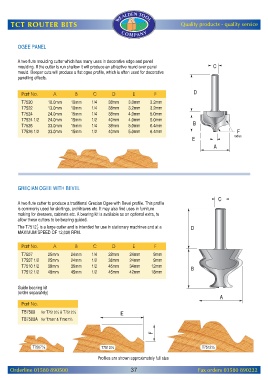

Page 39 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

OGEE PANEL

A two flute moulding cutter which has many uses in decorative edge and panel
moulding. If the cutter is run shallow it will produce an attractive round over panel
mould. Deeper cuts will produce a flat ogee profile, which is often used for decorative
panelling effects.

Part No. A B C D E F
T7520 10.0mm 10mm 1/4 38mm 3.0mm 3.2mm
T7522 13.0mm 10mm 1/4 38mm 3.2mm 3.2mm
T7524 24.0mm 15mm 1/4 38mm 4.0mm 5.0mm
T7524 1/2 24.0mm 15mm 1/2 40mm 4.0mm 5.0mm
T7526 33.0mm 15mm 1/4 38mm 5.0mm 6.4mm
T7526 1/2 33.0mm 15mm 1/2 40mm 5.0mm 6.4mm

GRECIAN OGEE WITH BEVEL

A two flute cutter to produce a traditional Grecian Ogee with Bevel profile. This profile
is commonly used for skirtings, architraves etc. It may also find uses in furniture
making for dressers, cabinets etc. A bearing kit is available as an optional extra, to
allow these cutters to be bearing guided.
The T7512 is a large cutter and is intended for use in stationary machines and at a
MAXIMUM SPEED OF 12,000 RPM.

Part No. A B C D E F
T7507 25mm 24mm 1/4 28mm 24mm 9mm
T7507 1/2 25mm 24mm 1/2 36mm 24mm 9mm
T7510 1/2 38mm 35mm 1/2 45mm 34mm 12mm
T7512 1/2 48mm 45mm 1/2 45mm 42mm 18mm

Guide bearing kit
(order separately)

Part No.
TB7500 for T7510½ & T7512½
TB7500A for T7507 & T7507½

Profiles are shown approximately full size
