STC Dowel Drills with Countersink

A range of Right Hand rotation multi-boring dowel drills, suitable for use in single and multi-head boring machines. The tools have a 10mm shank which incorporates a flat for secure location and a grub screw in the shank end for precise height adjustment. Solid Tungsten Carbide tips and drills, suitable for use in solid timbers and man-made boards. V point design for through hole drilling.

STC Dowel Drills with Countersink
STC Dowel Drills with Countersink
STC Dowel Drills with Countersink
  • STC Dowel Drills with Countersink Thumbnail
  • STC Dowel Drills with Countersink Thumbnail
  • STC Dowel Drills with Countersink Thumbnail

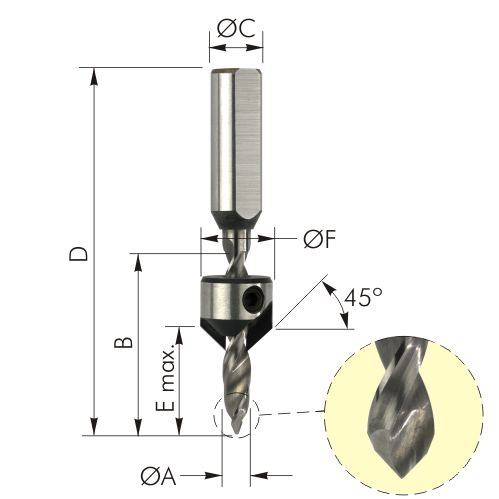

Part
Number
ØA
mm
B
mm
ØC
mm
D
mm
E max
mm
ØF
mm
PriceDetailsBuy
DG7035050R 5.03510702814 DG7035050R
  • £35.52
DG7035055R 5.53510702814 DG7035055R
  • £47.16
Replacement parts Replacement parts
DG70050R STC drill 5.0mm diameter replacement DG70050R
  • £25.92
DG70055R STC drill 5.5mm diameter replacement DG70055R
  • £34.68
DG7025050R TCT countersink for 5.0mm drill DG7025050R
  • £9.60
DG7025055R TCT countersink for 5.5mm drill DG7025055R
  • £12.48
